Station de surveillance santé intelligente : Arduino, Bluetooth et capteurs

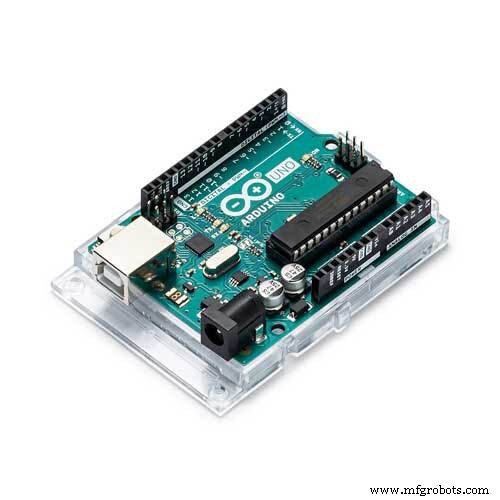

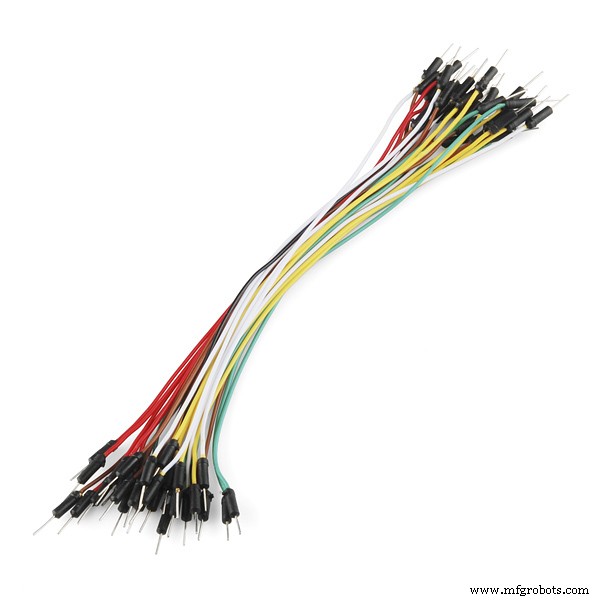

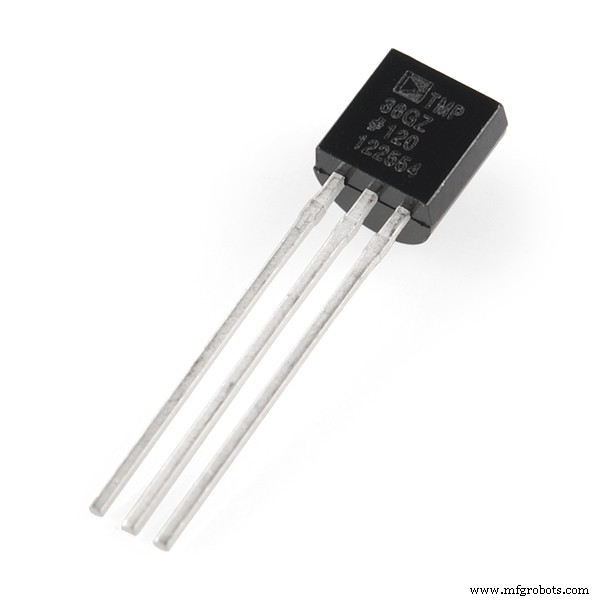

Composants et fournitures

Applications et services en ligne

• MIT App Inventor 2
• Arduino IDE

À propos du projet

Ce système électronique câblé, combinant capteurs et application mobile, offre une méthode simple pour surveiller l'état de santé et les paramètres environnementaux.

Code

Code C/C++

#include <SoftwareSerial.h>
#include <cactus_io_AM2302.h>
#define AM2302_PIN 7
#include <OneWire.h>
#include <DallasTemperature.h>
#define ONE_WIRE_BUS 2
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
AM2302 dht(AM2302_PIN);

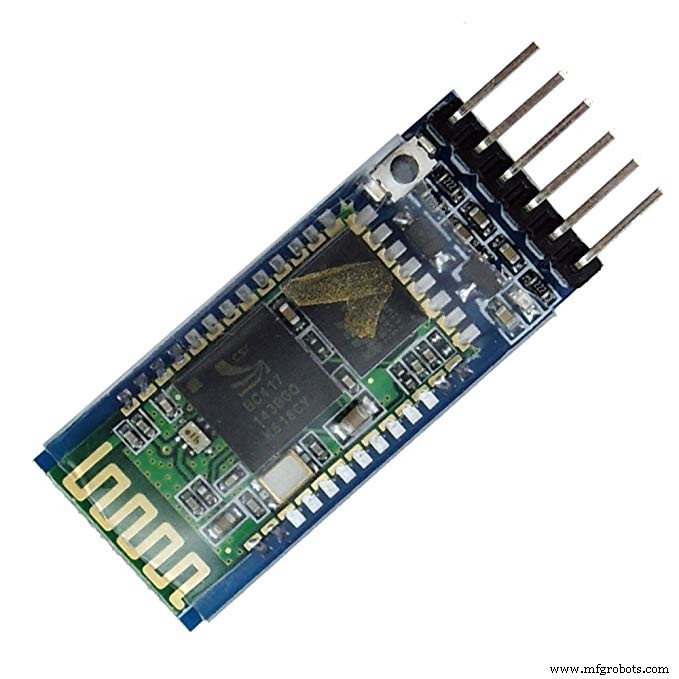

SoftwareSerial Bluetooth(10, 9);
String Data;
int pulsePin = 0;
int blinkPin = 13;
volatile int BPM;
volatile int Signal;
volatile int IBI = 600;
volatile boolean Pulse = false;
volatile boolean QS = false;
volatile int rate[10];
volatile unsigned long sampleCounter = 0;
volatile unsigned long lastBeatTime = 0;
volatile int P = 512;
volatile int T = 512;
volatile int thresh = 512;
volatile int amp = 100;
volatile boolean firstBeat = true;
volatile boolean secondBeat = false;

void interruptSetup() {
  TCCR2A = 0x02;
  TCCR2B = 0x06;
  OCR2A = 0X7C;
  TIMSK2 = 0x02;
  sei();
}

ISR(TIMER2_COMPA_vect) {
  cli();
  Signal = analogRead(pulsePin);
  sampleCounter += 2;
  int N = sampleCounter - lastBeatTime;
  if (Signal < thresh && N > (IBI / 5) * 3) {
    if (Signal < T) {
      T = Signal;
    }
  }
  if (Signal > thresh && Signal > P) {
    P = Signal;
  }
  if (N > 250) {
    if ((Signal > thresh) && (Pulse == false) && (N > (IBI / 5) * 3)) {
      Pulse = true;
      digitalWrite(blinkPin, HIGH);
      IBI = sampleCounter - lastBeatTime;
      lastBeatTime = sampleCounter;
      if (secondBeat) {
        secondBeat = false;
        for (int i = 0; i <= 9; i++) {
          rate[i] = IBI;
        }
      }
      if (firstBeat) {
        firstBeat = false;
        secondBeat = true;
        sei();
        return;
      }
      word runningTotal = 0;
      for (int i = 0; i <= 8; i++) {
        rate[i] = rate[i + 1];
        runningTotal += rate[i];
      }
      rate[9] = IBI;
      runningTotal += rate[9];
      runningTotal /= 10;
      BPM = 60000 / runningTotal;
      QS = true;
    }
  }
  if (Signal < thresh && Pulse == true) {
    digitalWrite(blinkPin, LOW);
    Pulse = false;
    amp = P - T;
    thresh = amp / 2 + T;
    P = thresh;
    T = thresh;
  }
  if (N > 2500) {
    thresh = 512;
    P = 512;
    T = 512;
    lastBeatTime = sampleCounter;
    firstBeat = true;
    secondBeat = false;
  }
  sei();
}

void setup() {
  Bluetooth.begin(9600);
  Serial.begin(9600);
  dht.begin();
  sensors.begin();
  interruptSetup();
}

void loop() {
  sensors.requestTemperatures();
  dht.readHumidity();
  dht.readTemperature();
  if (isnan(dht.humidity) || isnan(dht.temperature_C)) {
    return;
  }
  if (QS == true) {
    Serial.print(sensors.getTempCByIndex(0));
    Serial.print(" ");
    Serial.print(dht.temperature_C);
    Serial.print(" ");
    Serial.print(dht.humidity);
    Serial.print(" ");
    Serial.println(BPM);
    Bluetooth.print(sensors.getTempCByIndex(0));
    Bluetooth.print(" ");
    Bluetooth.print(dht.temperature_C);
    Bluetooth.print(" ");
    Bluetooth.print(dht.humidity);
    Bluetooth.print(" ");
    Bluetooth.println(BPM);
    QS = false;
  }
  delay(1500);
}

Code pour IDE Arduino : GitHub

Schémas

Plusieurs schémas de câblage sont disponibles dans le projet original.
